Colorization of Grey Images by applying a Convolutional Autoencoder on the Jetson Nano

by Dennis Konkol and Tim Niklas Witte

This repository contains an pretrainied convolutional autoencoder for colorization of grey images. The live camera stream will be colorizatized in real time. The architecture of the ANN is optimized to run on the Jetson Nano. In total, 10 FPS can be archived on this embedded GPU.

Requirements

• TensorFlow 2
• OpenCV 3.3.1

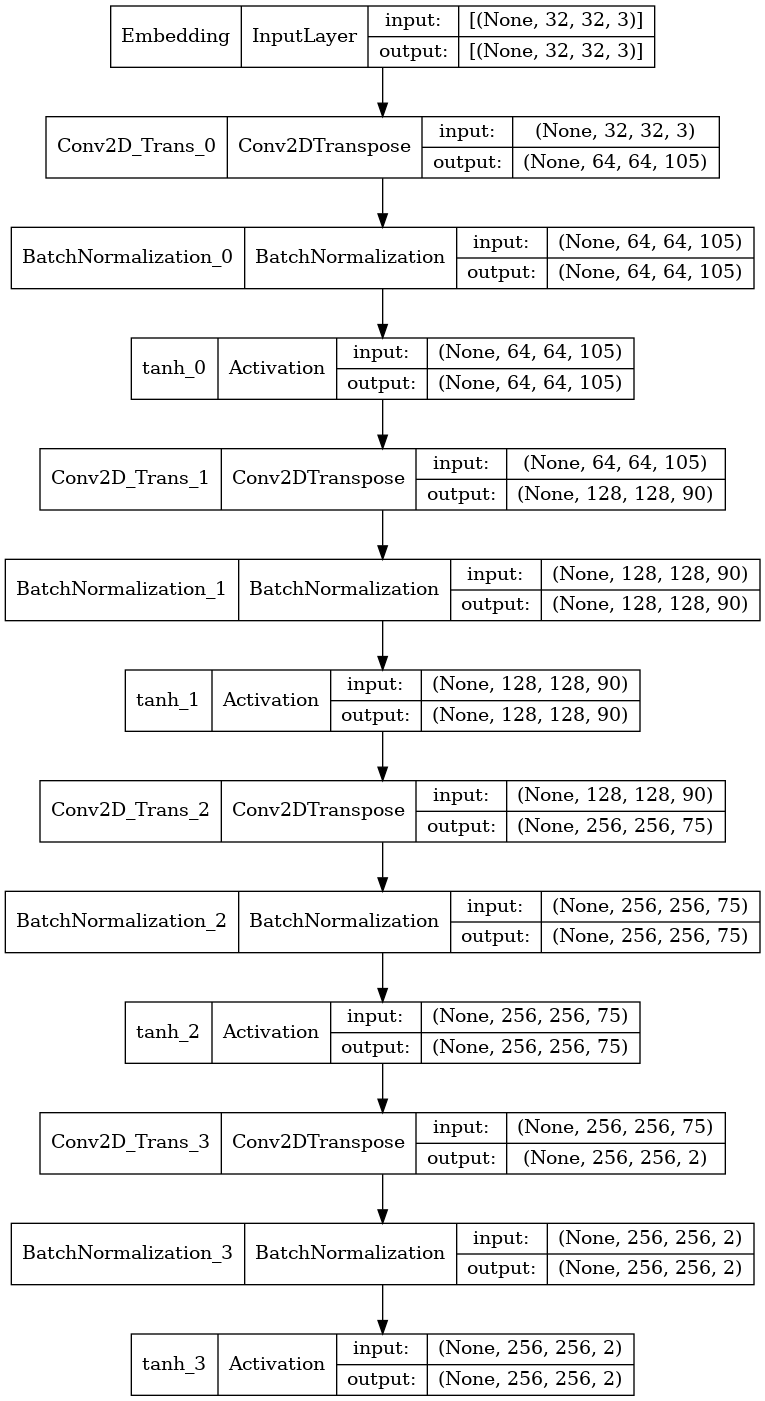

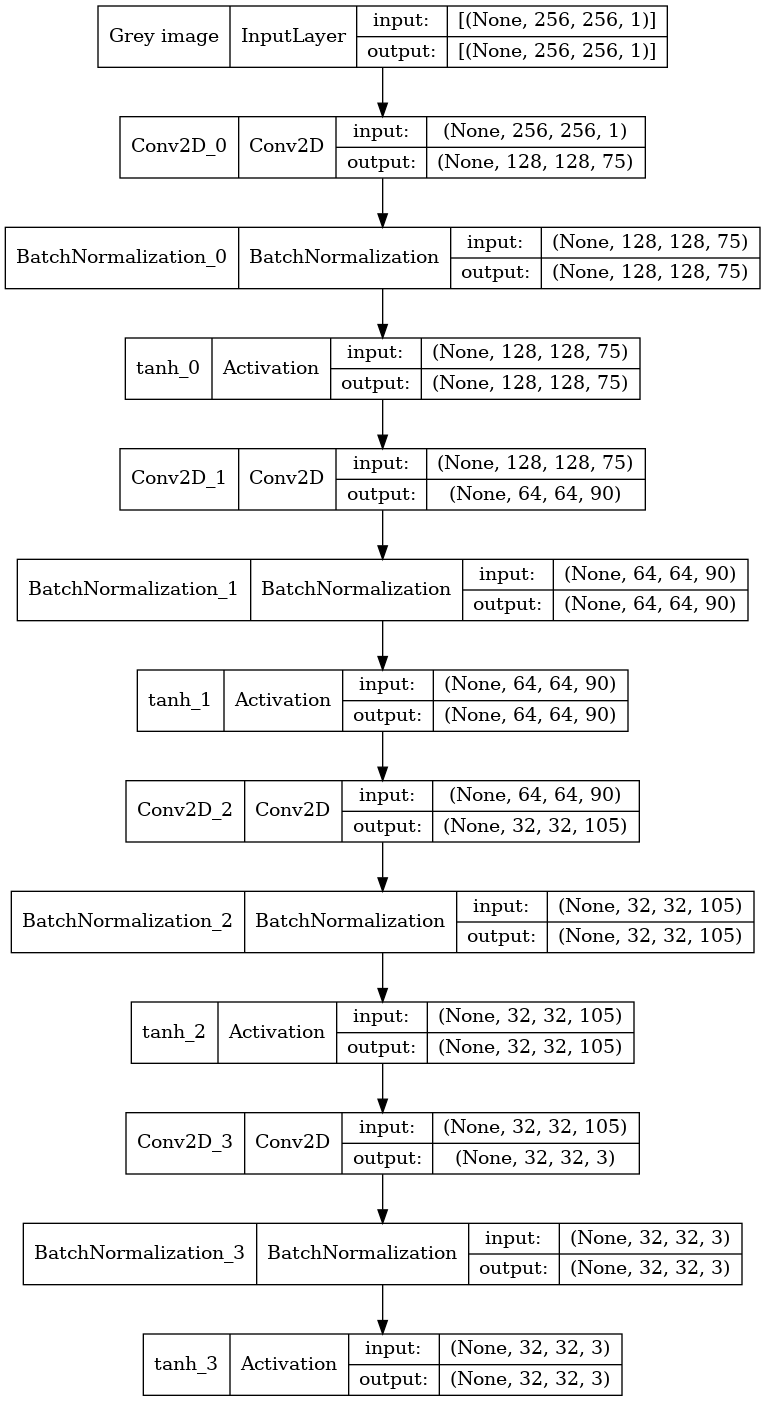

Model

 Model: "autoencoder"
_______________________________________________________________
 Layer (type)                Output Shape            Param #
===============================================================
 encoder (Encoder)           multiple                148155

 decoder (Decoder)           multiple                150145

===============================================================
Total params: 298,302
Trainable params: 297,210
Non-trainable params: 1,092
_______________________________________________________________

Usage

Training

Run Training.py to start the training of the model. Each epoch the weights are stored into ./saved_models. Besides, in ./test_logs are the corresponding trainings statistics (train and test loss and also a batch of colorized test images) logged.

python3 Training.py

Live colorization

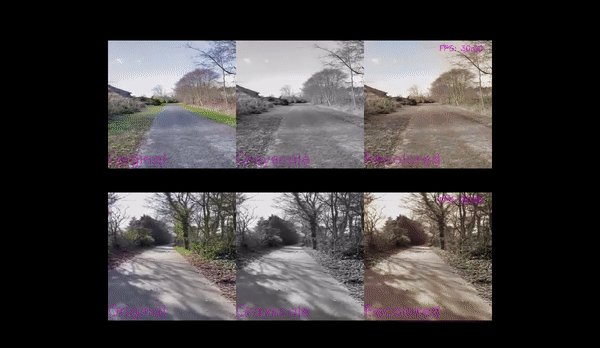

The launch of live_recolor_plot.py opens a window as shown in the GIF at the start of this README.

python3 live_recolor.py

It has the following structure:

(1) | (2) | (3) | (4)

(1) = live RGB camera image
(2) = live grey camera image
(3) = live colorized image

To get also displayed a loss plot (mean squared error between (1) and (3)), run live_recolor_plot.py instead. The loss plot is presented right from (3).

python3 live_recolor_plot.py

Pretrainied Model

The model was runned for 13 epochs and its weights are stored in ./saved_models. Note that, the grey images must have a shape of (256,256,1). The following code will load the model and colorized an image:

autoencoder = Autoencoder()
autoencoder.build((1, 256, 256, 1)) # need a batch size
autoencoder.load_weights("./saved_models/trainied_weights_epoch_12")
autoencoder.summary()

grey_img = ... # grey_img.shape = (256,256,1)
grey_img = np.expand_dims(grey_img, axis=0) # add batch dim
colorized_img = autoencoder(grey_img)
